Laser Cutting Parts
Your Professional Laser Cutting Parts Supplier
Qingdao Keysmile Valves Co. Ltd. is a diversified manufacturing company located in the Environmental Protection Industrial Park of Jimo District, Qingdao, China. Our core expertise and primary focus lie in precision sheet metal fabrication and marine valves.
We specialize in the production of high-quality hardware components and parts for a wide range of industries. Our capabilities include crafting components from various materials, including steel, iron, steel, and aluminum, through processes like cutting, bending, punching, and assembling. We are particularly well-known overseas for manufacturing various brackets, charging piles, furniture hardware, public facilities industry, various cabinets, trailer compartments, etc.
Why choose us
Comprehensive Quality System Assurance
The company is ISO 9001 certified and strictly implements process control and data traceability. From raw material inspection and production monitoring to final product testing, detailed records are kept to ensure consistent quality and a high pass rate for every batch.
High-Precision Machining and Reliable Performance
Equipped with advanced CNC machining equipment and testing instruments, and supported by an experienced technical team, we can achieve micron-level precision control. Our metal components meet the stringent requirements of European and American customers in terms of strength, wear resistance, and dimensional accuracy.
Efficient and Stable Delivery Capability
With a lean production system and intelligent scheduling management, we ensure visualization and efficient coordination throughout the production process. Even for large-volume orders, we guarantee on-time delivery and stable quality, meeting the continuous supply demands of long-term partners.
Flexible Customization and Technical Support
We not only process parts according to customer drawings (DWG, STEP, PDF, etc.), but also provide structural optimization and process improvement suggestions to help customers reduce costs and improve assembly efficiency — truly delivering a one-stop service from prototyping to mass production.

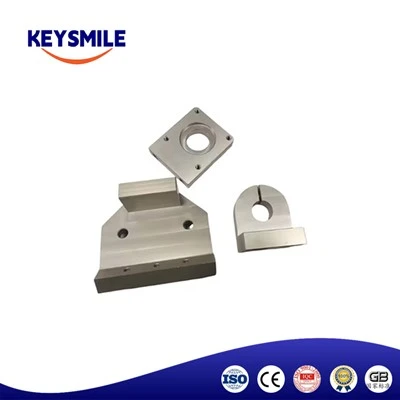

We specialize in providing custom laser cut parts tailored to your specific needs. Using advanced laser cutting technology, we deliver precise, high-quality metal components for various industries, including automotive, aerospace, and electronics. Whether you need one piece or a large batch, our solutions offer excellent accuracy, fast turnaround, and competitive pricing.
|
Product Name |
Laser Cutting Metal Parts |
|
Material |
Customized |
|
Service |
Custom OEM ODM |
|
Size |
Custom Size |
|
Quality |
100% Guranteed |
|
Logo |
Customer Logo |
|
Place of Origin |
Qingdao, China |
|
Model Number |
KS-030 |
|
Material |
Metal |
|
Application |
Industry |
|
Size |
Customized Size |
|
Product name |
Laser Cutting Metal Parts |
|
Surface treatment |
Zinc Plating, Mirror Polished, Brush Polished, Paint, Anodic Oxidation, Powder Coated |
|
Service |
Customized OEM |
|
Type |
OEM Parts |
|
Packing |
Plywood Box + Plywood Pallet, Plywood Box |
|
Customization options |
Customized logo (Min. order: 10,000 pieces) Customized packaging (Min. order: 10,000 pieces) Graphic customization (Min. order: 10,000 pieces) |
•Raw metal composition inspection;
•Sample quality inspection, including dimensions, chemical composition, and mechanical properties;
•Mass production procedures monitoring;
•Quality inspection after mass production;
•Packaging and transportation inspection;
•All tests must have traceable inspection reports on file.
Laser Cutting Design Guidelines
In.mm
|
Maximum Size |
Thickness 0.134 - 0.250 in.: 39 in. x 19 in. Thickness 0.024 in - 0.134 in.: 39 in. x 47 in. |
|
Minimum Part Size |
0.25 in. x 0.25 in. |
|
Material Thicknesses |
0.024 in. - 0.250 in. |
|
Tolerances |
+/- 0.005 in. for all features (except for hardware holes) +0.003/-0.000 in. on hardware insert holes to ensure correct seating of inserts |
|
Material |
Grade |
Thicknesses Available |
|
Aluminum |
5052-H32 6061-T6 |
0.025 in. - 0.250 in. (0.635mm - 6.35mm) |
|
Steel |
CRS/HRPO Galvanneal Galvanized |
0.025 in. - 0.250 in. (0.635mm - 6.35mm) |
|
Stainless Steel |
304-2B 304 #4 316-2B |
0.025 in. - 0.250 in. (0.635mm - 6.35mm) |
|
Copper |
C1010 C1100 |
0.025 in - 0.125 in. (0.635mm - 3.175) |
|
Brass |
C260 |
0.025 in. - 0.125 in. (0.635mm - 3.175) |
Custom Laser Cutting Parts Design Guideline
These guidelines offer industry standard values to achieve optimal precision, clean cuts, and efficient processing in custom laser cutting parts. Following these standards minimizes waste, reduces processing time, and ensures high-quality, accurate production.
|
Design Element |
Suggestions (Industry Standard Values) |
Reasons and Benefits |
|
Material Thickness |
Recommended range: 0.5 - 20 mm (ideal: depends on material type) |
Ensures optimal precision, quality cuts, and reduces processing time and cost. |
|
Hole Diameter |
Minimum hole diameter ≥ 0.5x material thickness |
Prevents deformation, ensures accuracy, and maintains hole roundness. |
|
Hole Spacing |
Minimum spacing between holes ≥ material thickness |
Maintains structural integrity, prevents warping or distortion. |
|
Minimum Feature Size |
Typically ≥ 0.5 mm width |
Ensures accurate, clean cuts and avoids deformation of intricate details. |
|
Corner Radii |
Minimum recommended radii ≥ 0.3 - 0.5 mm |
Reduces stress concentration, prevents cracking, and improves part durability. |
|
Kerf Width (cut width) |
Typical laser kerf: 0.1 - 0.3 mm |
Accounts for material removed during cutting, ensuring dimensional accuracy. |
|
Text and Logos |
Minimum height ≥ 2 - 3 mm |
Ensures readability, clarity, and clean edges, suitable for laser precision. |
|
Tolerances |
Typical dimensional tolerance: ±0.05 - 0.2 mm |
Provides high precision cutting suitable for detailed mechanical and decorative applications. |
|
Sheet Size/Part Nesting |
Optimize nesting; spacing between parts: ≥ 1 mm |
Maximizes material utilization, reduces waste, and lowers production costs. |
|
Edge Quality |
Standard edge roughness: Ra 3.2 - 6.3 µm |
Achieves smooth edges, reducing post-processing requirements. |
|
Tabs and Bridges |
Width ≥ 1 - 3 mm, if required |
Keeps small parts connected during cutting, preventing loss or damage during handling. |
|
Sharp Corners |
Add small radius or relief cuts if corners are critical |
Reduces thermal stress, warping, and improves longevity of cut edges. |
|
Engraving Depth |
Recommended depth ≤ 0.2 mm |
Provides clear, precise engraving without compromising material strength or appearance. |
Get Instant Quote
Packing
1. Prevent from damage.
2. As customers' requirements, in perfect condition.
3. Send the sample by express, 5 working days.
FAQ
We're professional laser cutting parts manufacturers and suppliers in China, specialized in providing high quality customized service and OEM service. We warmly welcome you to buy high precision laser cutting parts at the best price from our factory.
