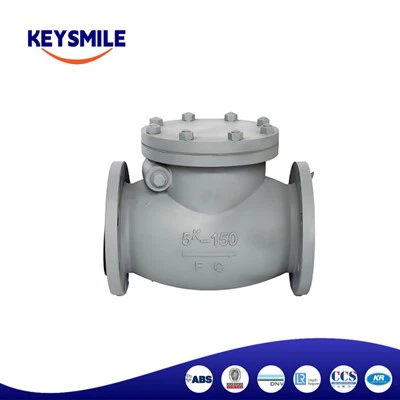

The Marine Swing Valves are robust cast steel valves designed to control flow in marine applications. These API valves feature a swinging disc that hinges or trunnions, blocking the flow in one direction to prevent reverse flow or allowing forward flow when off the seat. The seat opening can be perpendicular to the centerline or at an angle. Swing check valves are commonly used for larger applications.
Dimensions - unit:mm
|
Rating |
SIZE |
φd |
L |
H |
FF Flange |
|||
|
φD |
φC |
t |
n-φh |
|||||
|
5K |
50A |
50 |
190 |
97 |
130 |
105 |
16 |
4-15 |
|
65A |
65 |
220 |
119 |
155 |
130 |
18 |
4-15 |
|
|
80A |
80 |
250 |
129 |
180 |
145 |
18 |
4-19 |
|
|
100A |
100 |
280 |
146 |
200 |
165 |
20 |
8-19 |
|
|
125A |
125 |
330 |
171 |
235 |
200 |
20 |
8-19 |
|
|
150A |
150 |
380 |
198 |
265 |
230 |
22 |
8-19 |
|
|
200A |
200 |
460 |
235 |
320 |
280 |
24 |
8-23 |
|
|
250A |
250 |
550 |
290 |
385 |
345 |
26 |
12-23 |
|
|
10K |
50A |
50 |
210 |
109 |
155 |
120 |
20 |
4-19 |
|
65A |
65 |
240 |
126 |
175 |
140 |
22 |
4-19 |
|
|
80A |
80 |
270 |
136 |
185 |
150 |
22 |
8-19 |
|
|
100A |
100 |
300 |
153 |
210 |
175 |
24 |
8-19 |
|
|
125A |
125 |
350 |
180 |
250 |
210 |
24 |
8-23 |
|
|
150A |
150 |
400 |
205 |
280 |
240 |
26 |
8-23 |
|
|
200A |
200 |
480 |
242 |
330 |
290 |
26 |
12-23 |
|

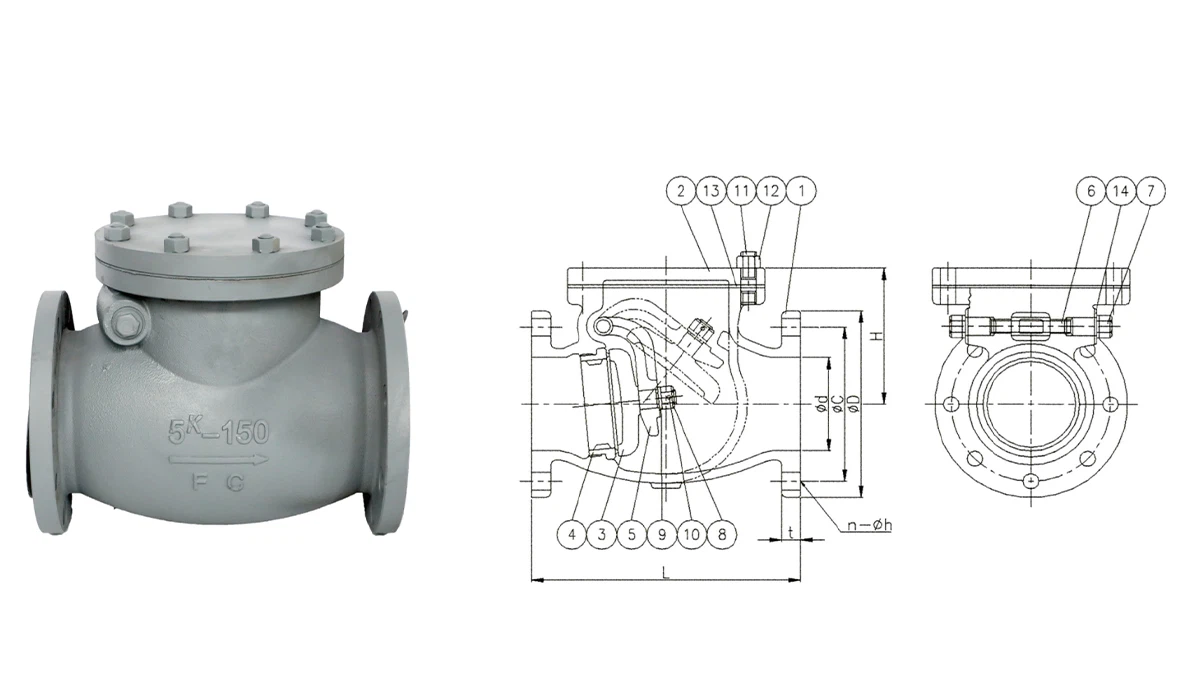

Product Structure Drawing
Hydro. test pressure - unit:kgf/cm²
|
Rating |
5 |
10 |
|
Hydraulic inspection for body |
10.5 |
21 |
|
Watertight inspection for valve seat |
7.7 to 4 |
15.4 to 4 |
Max. working pressure - unit:kgf/cm2
|
Rating Fluid condition |
5 |
10 |
|
Oil and pulsation water |
5 |
10 |
|
Non - shock water of 120℃ or less |
7 |
14 |
Material List
|
NO. |
Parts |
Material |
|
1 |
Body |
FC200 |
|
2 |
Bonnet |
FC200 |
|
3 |
Disc |
CAC406(BC6) |
|
4 |
Valve seat |
CAC406(BC6) |
|
5 |
Arm |
CAC406(BC6) |
|
6 |
Hinge pin |
C3604 |
|
7 |
Plug |
C3604 |
|
8 |
Hex. nut |
C3604 |
|
9 |
Washer |
C2801 |
|
10 |
Split pin |
C2600 |
|
11 |
Stud bolt |
SS400 |
|
12 |
Hex. nut |
SS400 |
|
13 |
Gasket |
NON ASBESTOS |
|
14 |
Gasket |
PTFE |
Features
Material
High-quality cast iron body with corrosion-resistant internal components.
Design
Swing-type disc for smooth operation and low-pressure drop.
End Connection
Flanged ends for easy installation and secure fitting.
Operation
Non-return design – prevents backflow and protects pumps, compressors, and piping systems.
Size Range
Available in standard marine sizes.
Standards Compliance
Manufactured in accordance with international marine and industrial standards.
1-Body: Cast Iron
2-Bonnet: Cast Iron
3-Disc: Bronze
4-Seat: Bronze
5-Gasket: Non-asbestos
Applications
Marine and Shipbuilding: Used in seawater, freshwater, and other fluid systems on ships.
Industrial: Suitable for various industrial applications requiring check valves with JIS standards.
Installation
Flanged Ends: Designed for bolted connections to flanges on the pipeline.
Orientation: Usually installed in horizontal pipelines, but can also be used in vertical applications with upward flow.
Maintenance
Access: The bolted cover allows for easy inspection and maintenance of internal components.
Durability: Cast iron construction and corrosion-resistant internal materials ensure long service life with minimal maintenance.
