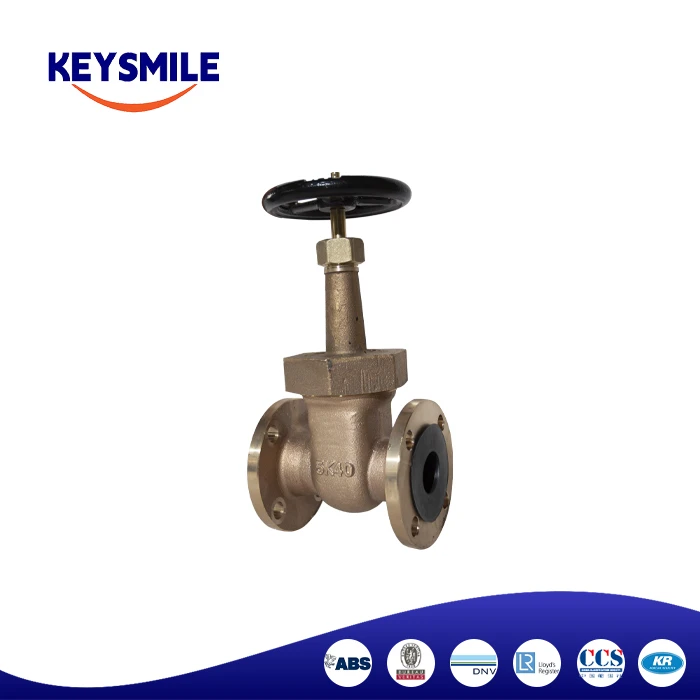

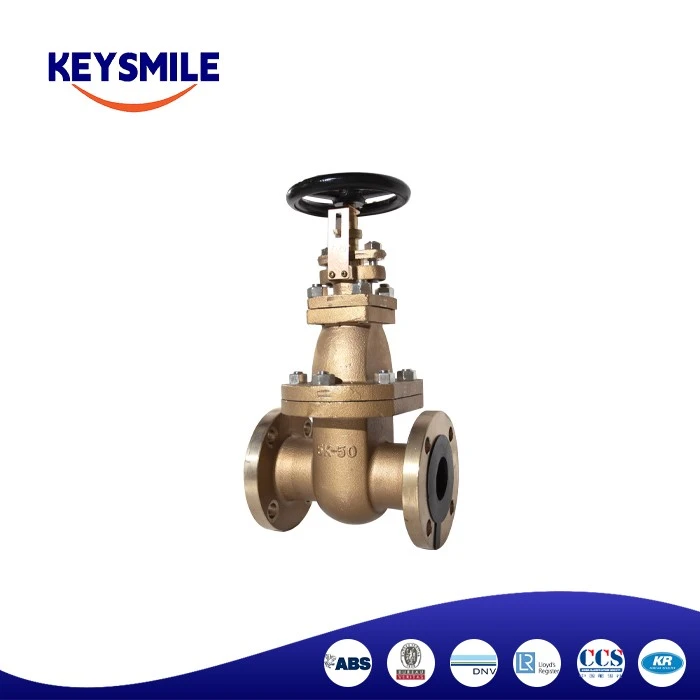

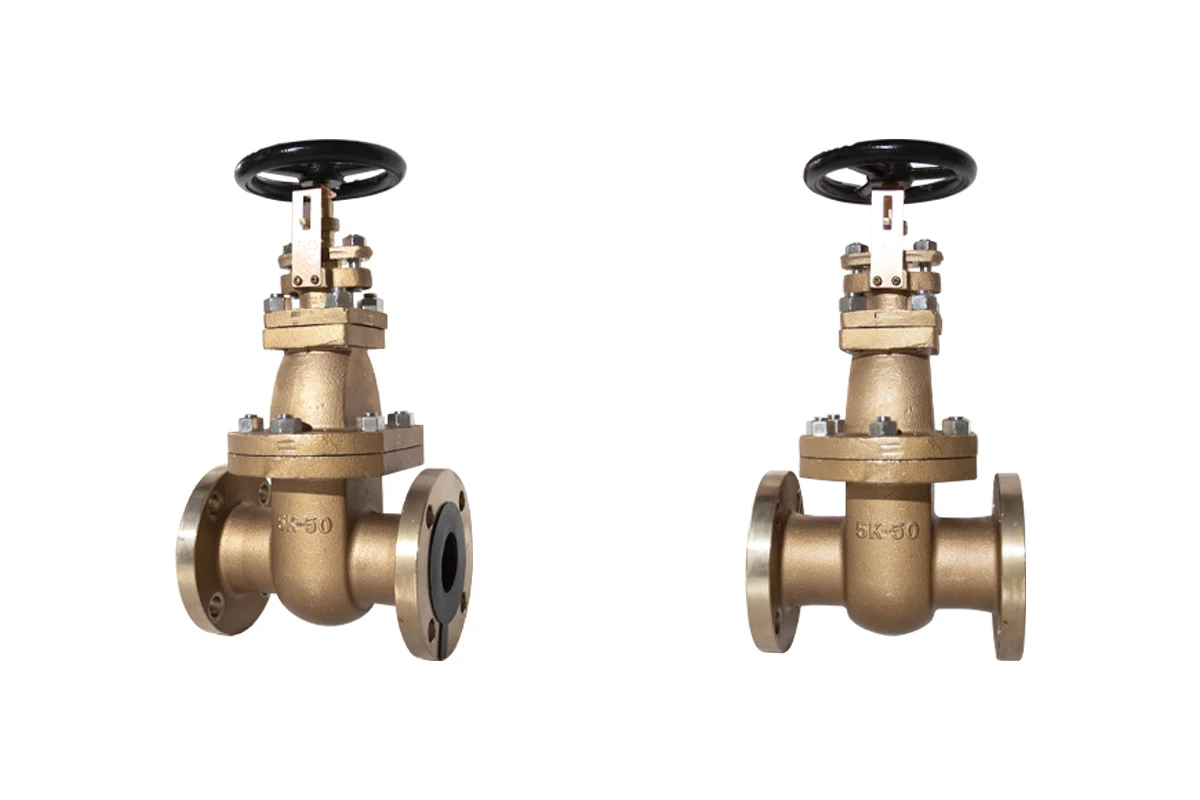

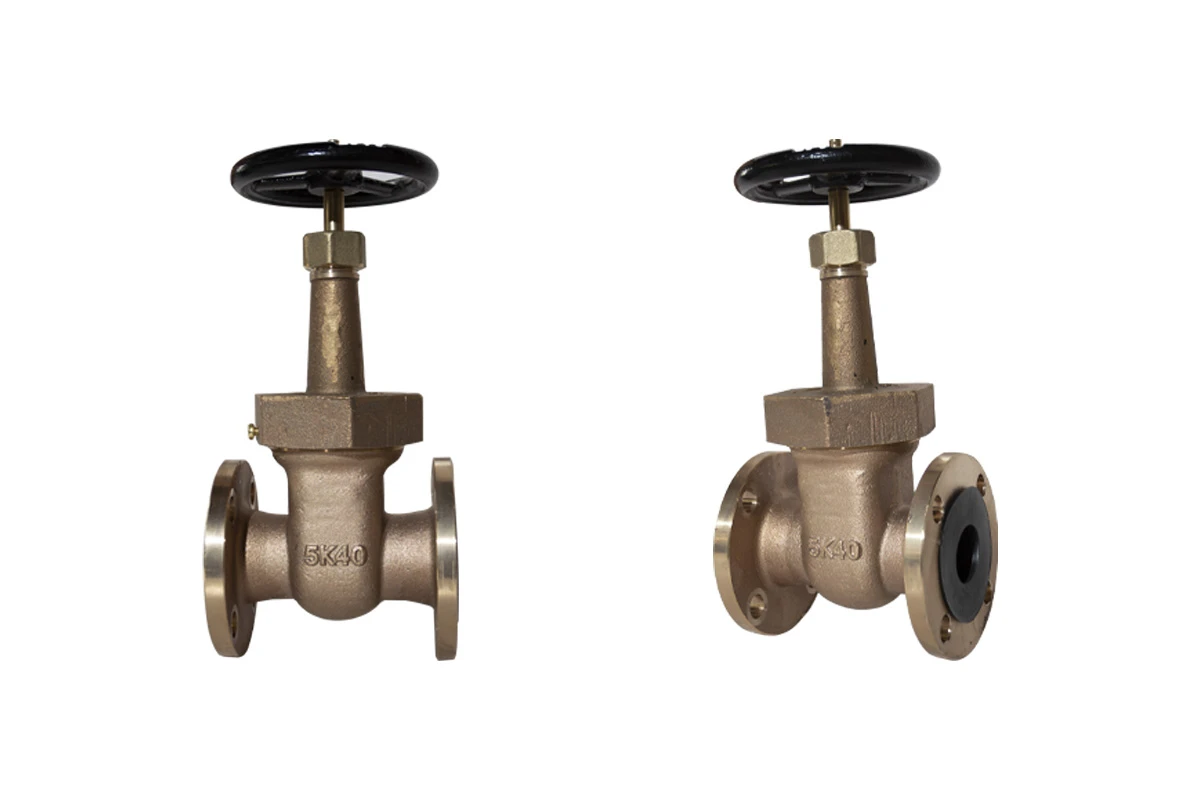

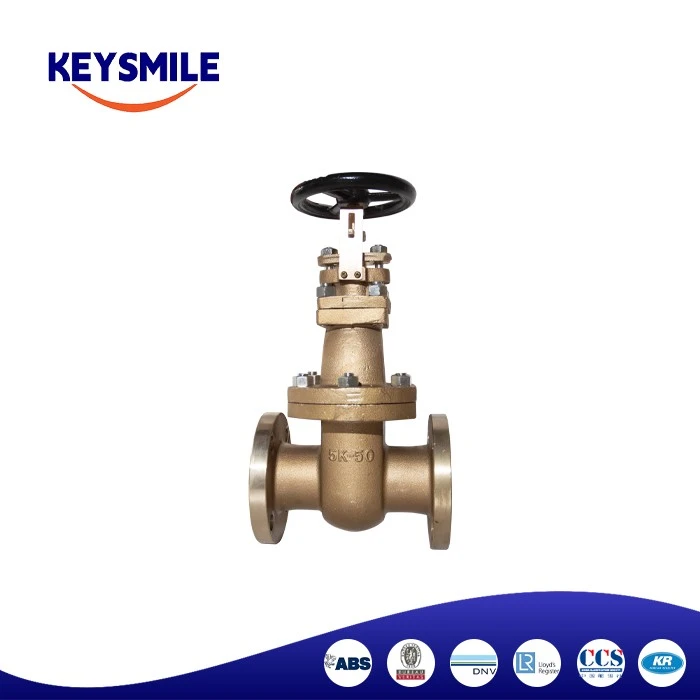

Marine Bronze Gate Valves

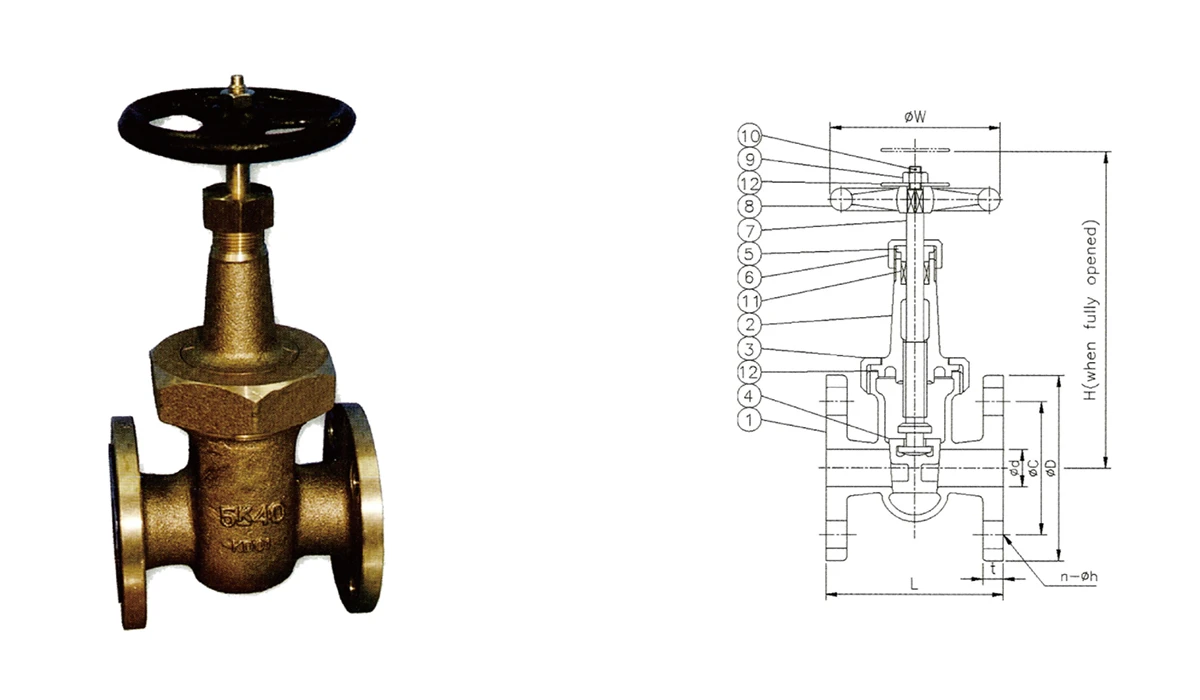

Marine gate valves are widely used in ship's water supply, drainage, fire fighting, oil pump and other pipelines, playing an important role in controlling fluid flow. In the water supply and drainage system, marine gate valves can effectively control water flow and prevent backflow; in the oil-water pipeline, marine gate valves can control the flow of oil and water; in the cabin compartment system, marine gate valves can regulate the water flow between cabins to ensure the normal operation of the system. Marine gate valves are an important part of the ship's pipeline system, and their role is very important. Marine gate valves can effectively prevent the leakage of liquid or gas in the pipeline and ensure the stability and safety of the ship. Marine gate valves are a type of valve that is opened and closed through the sealing pair between the gate and the valve seat. It is mainly composed of a gate, a valve seat and a valve stem connected by a flange. The gate moves up and down by rotating the valve stem to control the flow of the medium.

According to different structures and application scenarios, marine gate valves can be divided into many types: flange gate valves, wedge gate valves, parallel gate valves, double gate valves, manual gate valves, hydraulic gate valves, electric gate valves, etc.; the gate valve gate moves vertically along the center line of the channel to open and close, with the advantages of small fluid resistance and unrestricted medium flow direction, suitable for large-diameter pipeline systems such as seawater and fresh water. However, the opening and closing speed of the gate valve is relatively slow, and the sealing surface is easy to wear. The bronze material of the gate valve has good seawater corrosion resistance and is often used for valves in direct contact with seawater;

According to the frequency of use and working environment of the valve, a reasonable regular maintenance plan should be formulated. The maintenance content includes cleaning the dirt and impurities on the surface and inside of the valve, inspecting and replacing the valve seals, lubricating and maintaining the valve operating mechanism, and checking whether the valve connection bolts are loose. With low flow resistance, two-way sealing and large-diameter adaptability, marine gate valves have become the preferred cut-off equipment for core pipelines (seawater, ballast water, and oil) of ships, but they should be avoided in flow regulation scenarios. Marine gate valves have dual flow directions. They are not limited to one-way flow and are not affected by the flow direction of the medium. Therefore, gate valves are suitable for pipelines where the flow direction may change. In addition, they are easier to install than other more complex types of valves.
